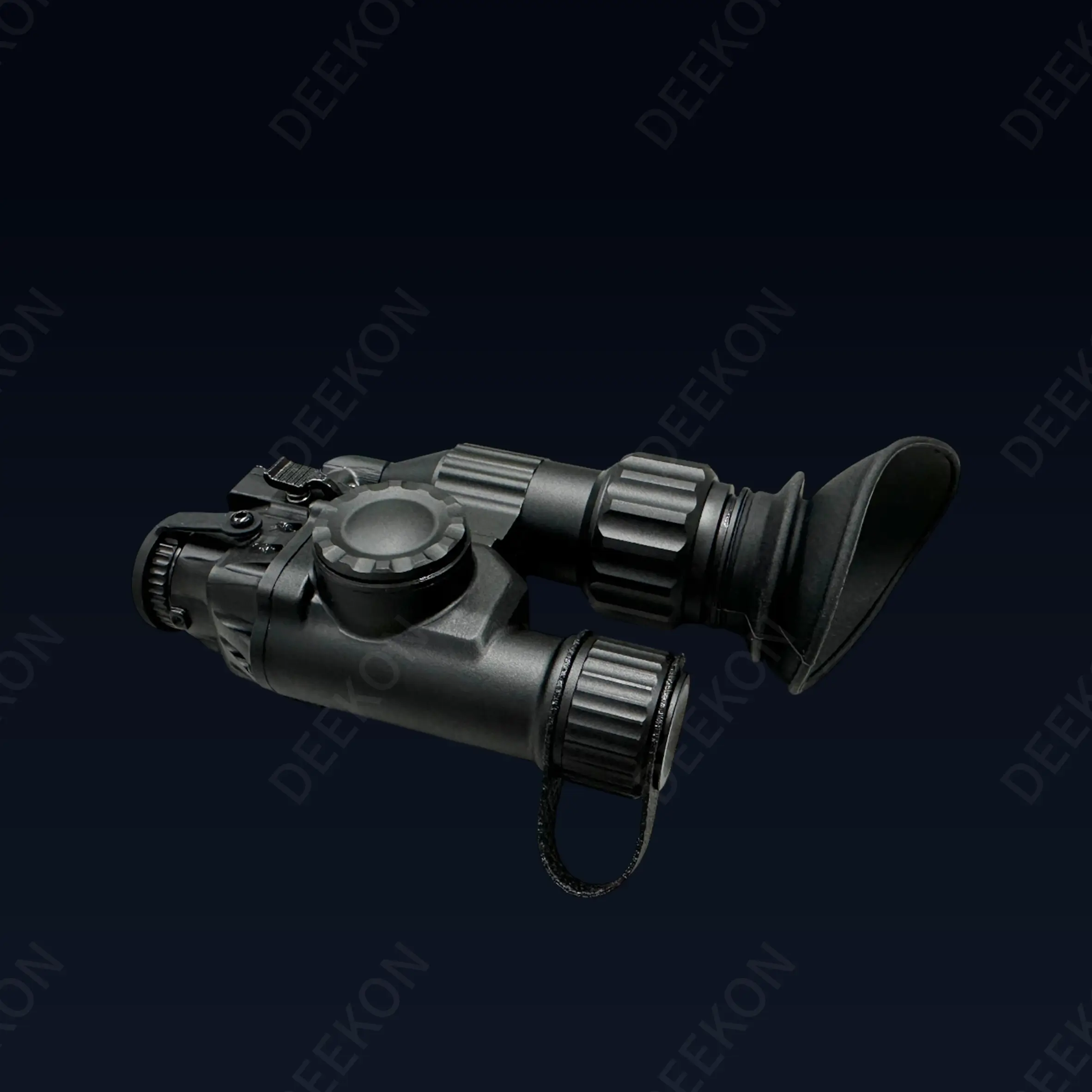

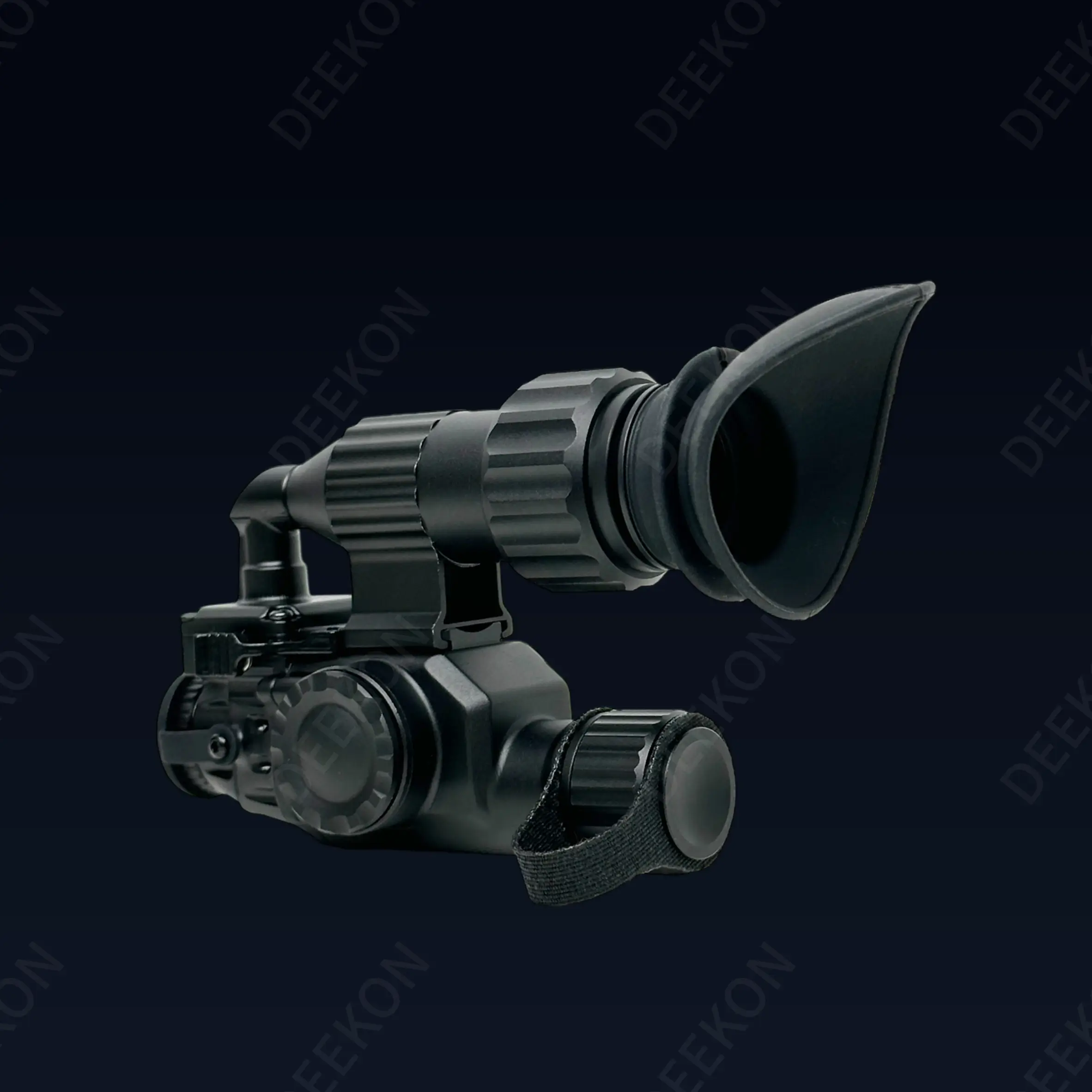

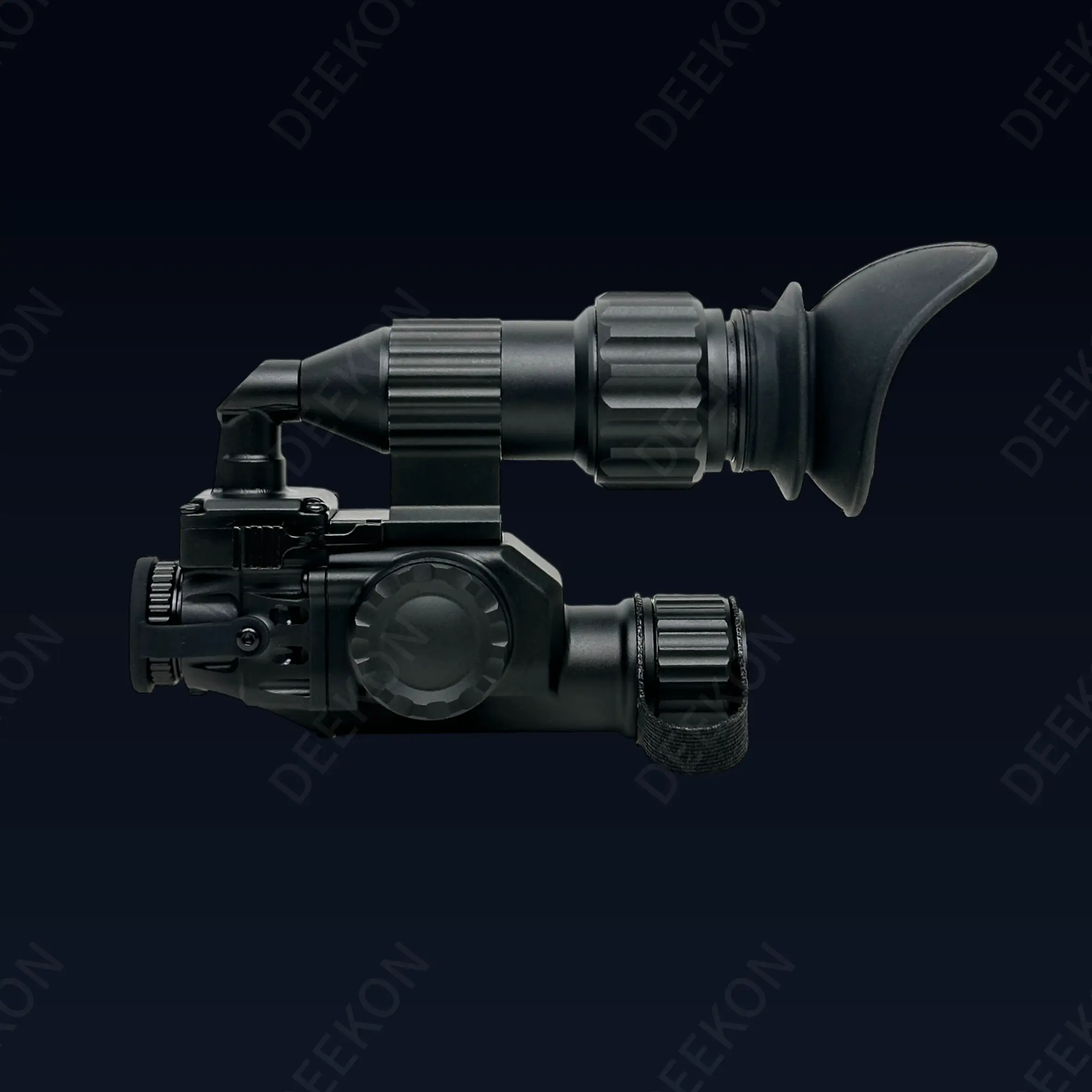

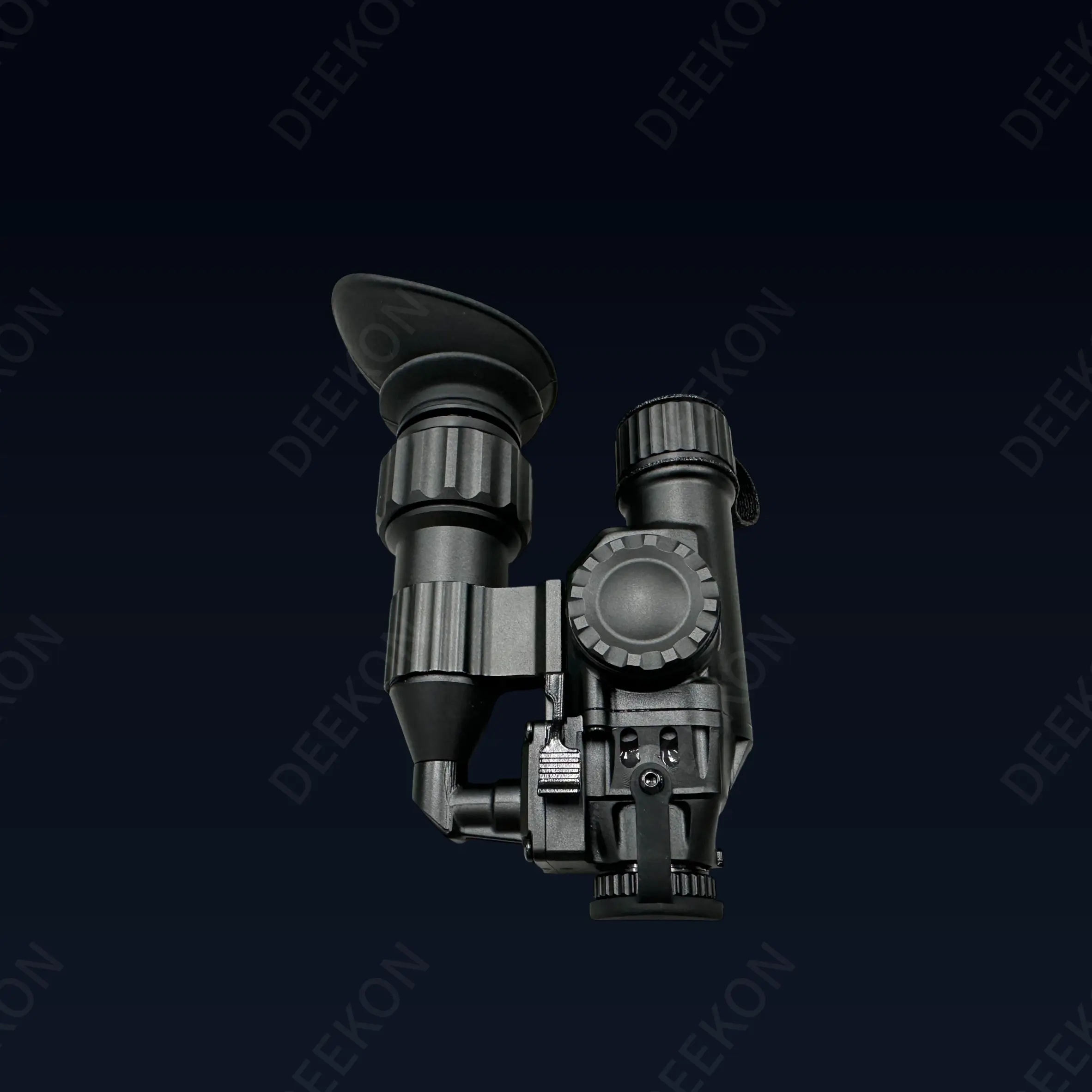

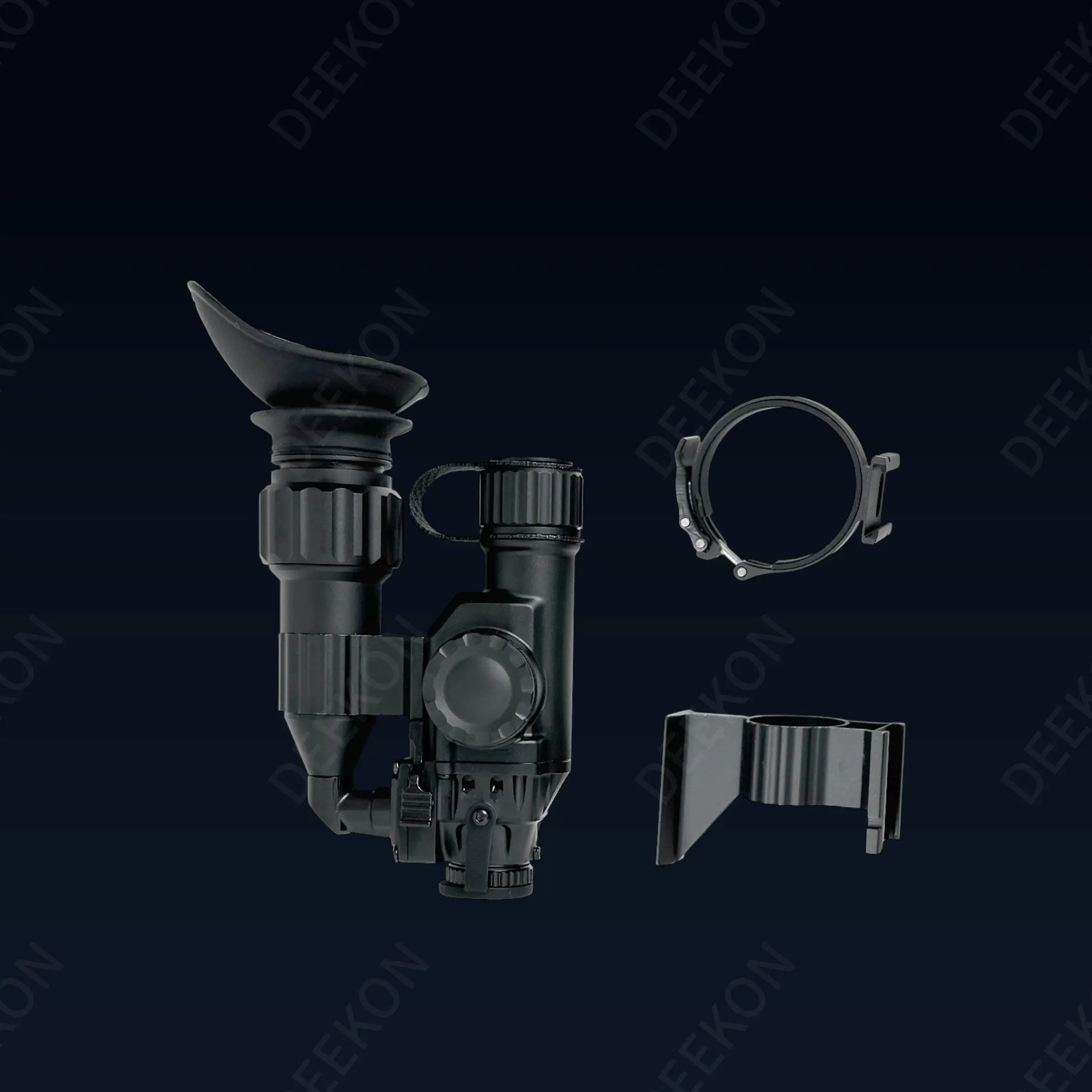

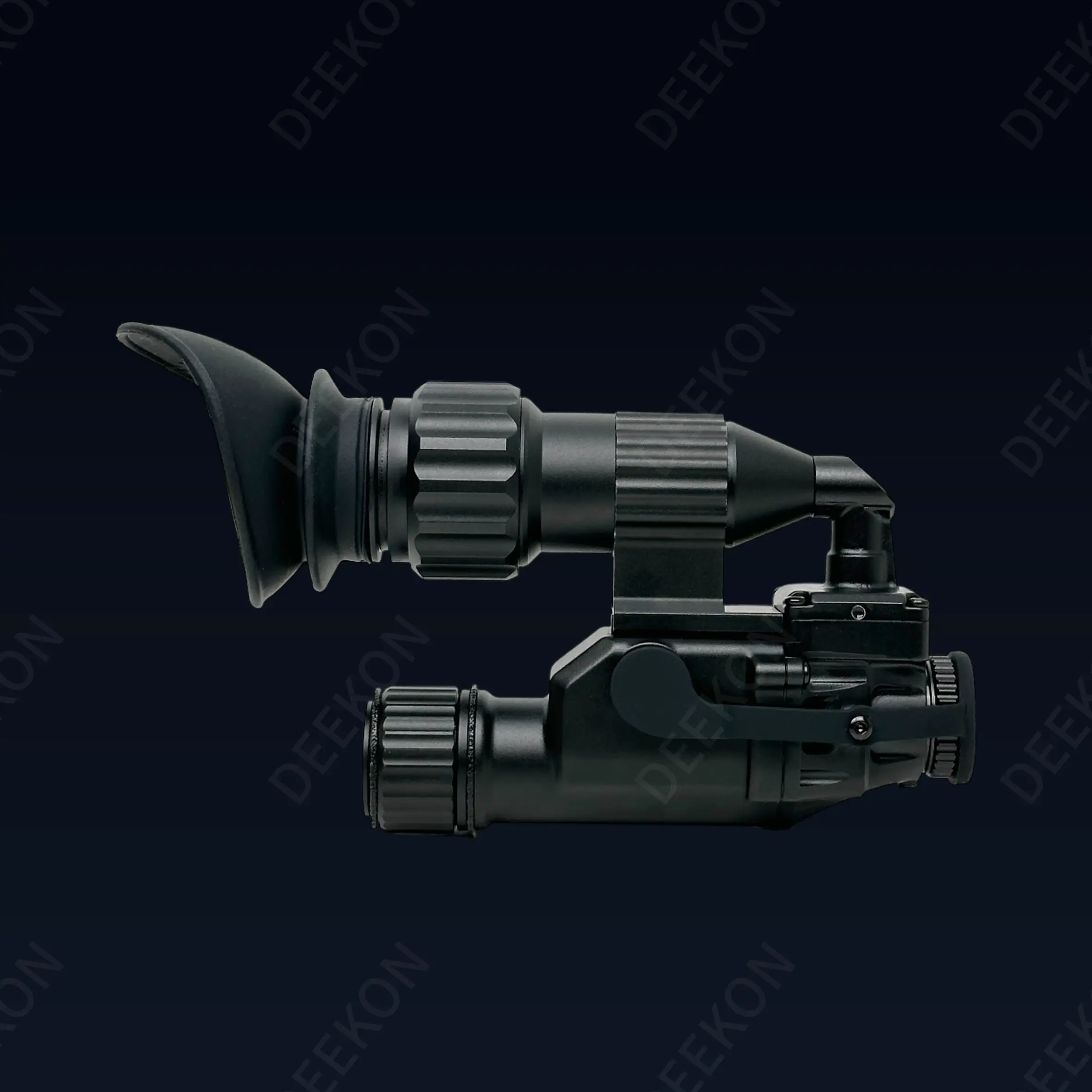

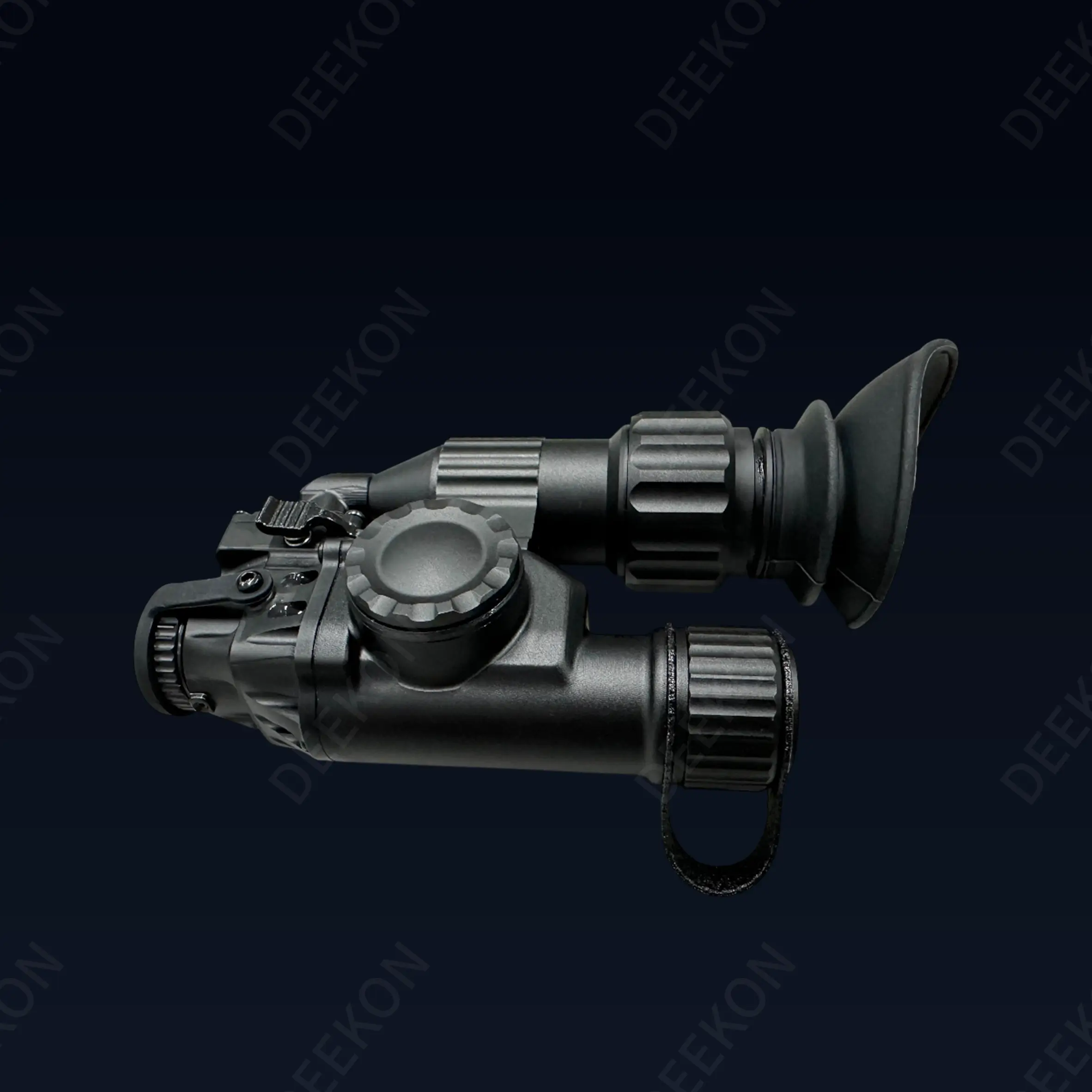

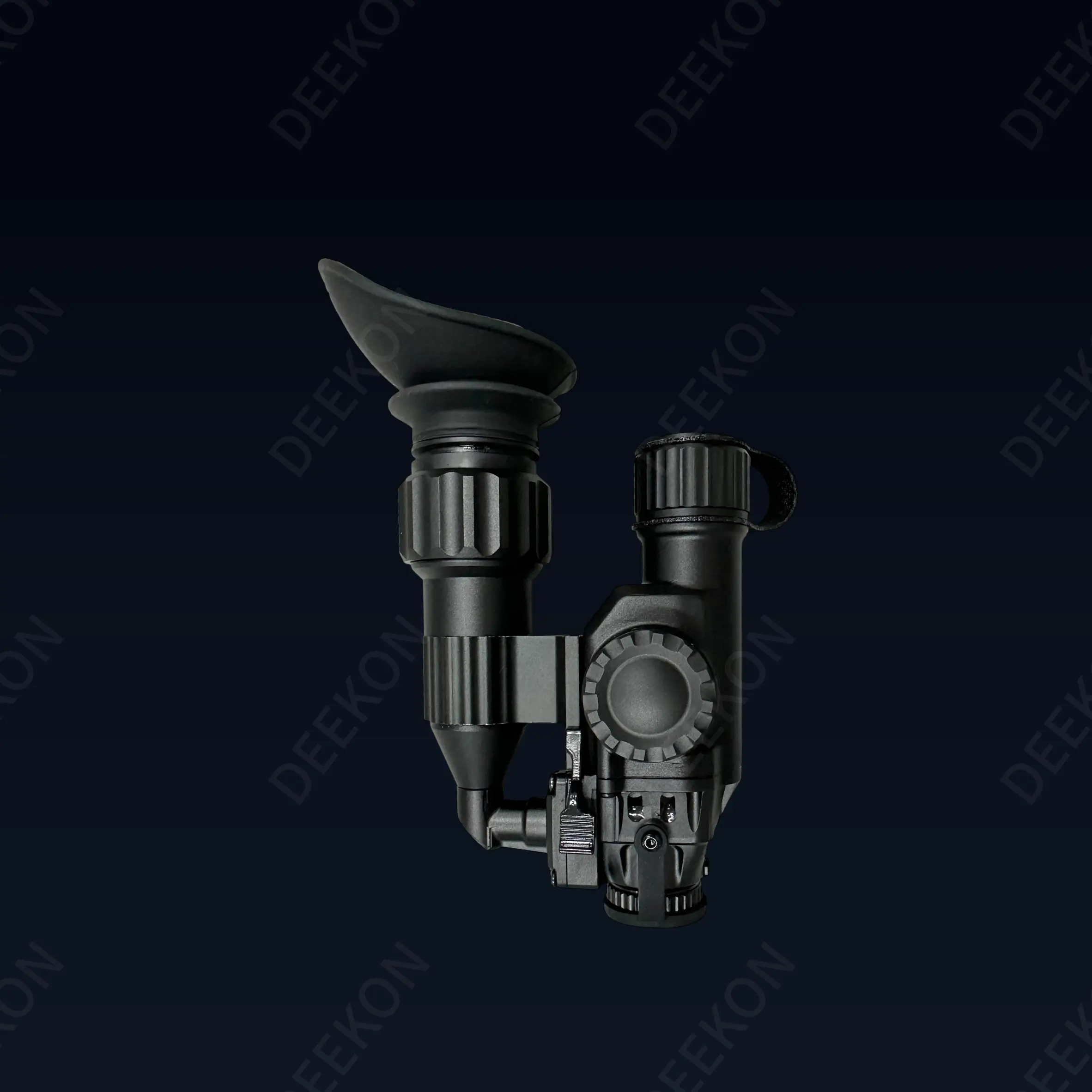

Det Res 384×288 AWL 8μm-12μm MultiFunctional Thermal Imager CNO-TW21

Det Res 384x288 AWL 8μm-12μm MultiFunctional Thermal Imager CNO-TW21
Det Res 384x288 AWL 8μm-12μm MultiFunctional Thermal Imager CNO-TW21 Det Res 384x288 AWL 8μm-12μm MultiFunctional Thermal Imager CNO-TW21 Det Res 384x288 AWL 8μm-12μm MultiFunctional Thermal Imager CNO-TW21 Det Res 384x288 AWL 8μm-12μm MultiFunctional Thermal Imager CNO-TW21 Det Res 384x288 AWL 8μm-12μm MultiFunctional Thermal Imager CNO-TW21 Det Res 384x288 AWL 8μm-12μm MultiFunctional Thermal Imager CNO-TW21 Det Res 384x288 AWL 8μm-12μm MultiFunctional Thermal Imager CNO-TW21 Det Res 384x288 AWL 8μm-12μm MultiFunctional Thermal Imager CNO-TW21

Det Res 384×288 AWL 8μm-12μm MultiFunctional Thermal Imager CNO-TW21

CNO-TW21 Thermal Vision Enhancement System combines next-generation thermal imaging technology with a fully modular design, delivering exceptional performance across all environments. The TW21 can be deployed as a handheld unit, helmet-mounted monocular, or integrated directly with night vision devices to enable thermal fusion.

With its advanced fusion mode, the TW21 overlays thermal signatures onto traditional night vision imagery, allowing operators to detect heat sources, identify biological targets, and enhance situational awareness—especially in total darkness, dense vegetation, smoke, or fog.

$3,699

Key Features

  • Thermal imaging monocular Det Res 384×288
  • AWL 8μm-12μm
  • Thermal fusion night vision
  • Multi-functional thermal imager
  • Handheld thermal vision system
  • Military-grade thermal optics

Technical Specifications

Detector resolution: 384×288
Applicable wavelength: 8μm-12μm
Waterproof: IP67
FOV: 32°(Clip-on)/36°(Handheld/Head-mounted) Center of circle
Focussing distance: 250mm~∞
Battery: CR123(A)x1
Battery Life: 3.5-4.5 hours
Weight: 140(Handheld) 144(Head-mounted) 92(Clip-on)
Dimensions: 88x38x70mm
Operating Temp: -40°C to +60°C
Request Quote

Product Information

Product Overview

CNO-TW21 Multi-Functional Thermal Vision Enhancement System

The CNO-TW21 represents the latest generation of thermal imaging monoculars, engineered by Combat Night Optics to deliver unmatched clarity, versatility, and adaptability in complex environments. Built with cutting-edge infrared technology, the CNO-TW21 is designed for operators who need thermal detection, night vision enhancement, and multi-platform compatibility in a single, lightweight device.

Next-Level Thermal Imaging Performance

Equipped with advanced uncooled infrared sensors, the CNO-TW21 provides:

High-resolution thermal imaging

Fast heat source detection

Clear visibility through darkness, smoke, fog, and vegetation

Rapid identification of human and animal targets

This makes it an ideal tool for military missions, law-enforcement surveillance, wildlife observation, search and rescue, and border patrol.

Thermal Fusion Capability (Heat + Night Vision Integration)

The CNO-TW21’s most powerful function is thermal fusion, which overlays thermal heat signatures onto standard night vision imagery. This dual-layer vision dramatically enhances recognition capability by enabling users to:

Instantly identify biological targets

Detect concealed threats behind foliage or camouflage

Improve situational awareness in complete darkness

Distinguish between hot and cold objects at long distances

Thermal fusion is now considered the gold standard for special operations and high-risk nighttime missions.

Applications

  • Military Operations
  • Law Enforcement
  • Search & Rescue
  • Surveillance
  • Wildlife Observation

Package Includes

  • Night Vision Unit
  • Head Mount Assembly
  • Protective Carrying Case
  • CR123(A)x1
  • User Manual & Warranty
