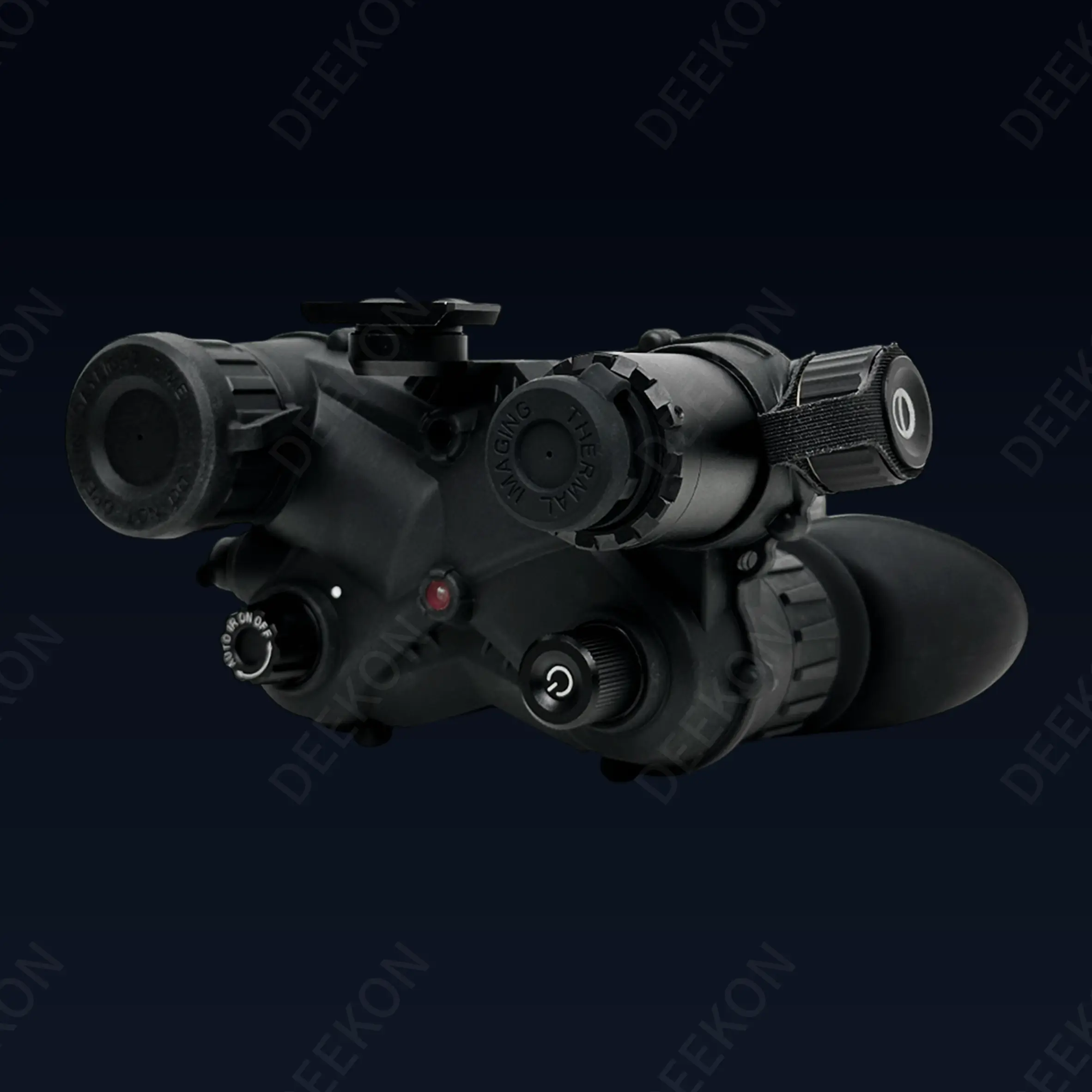

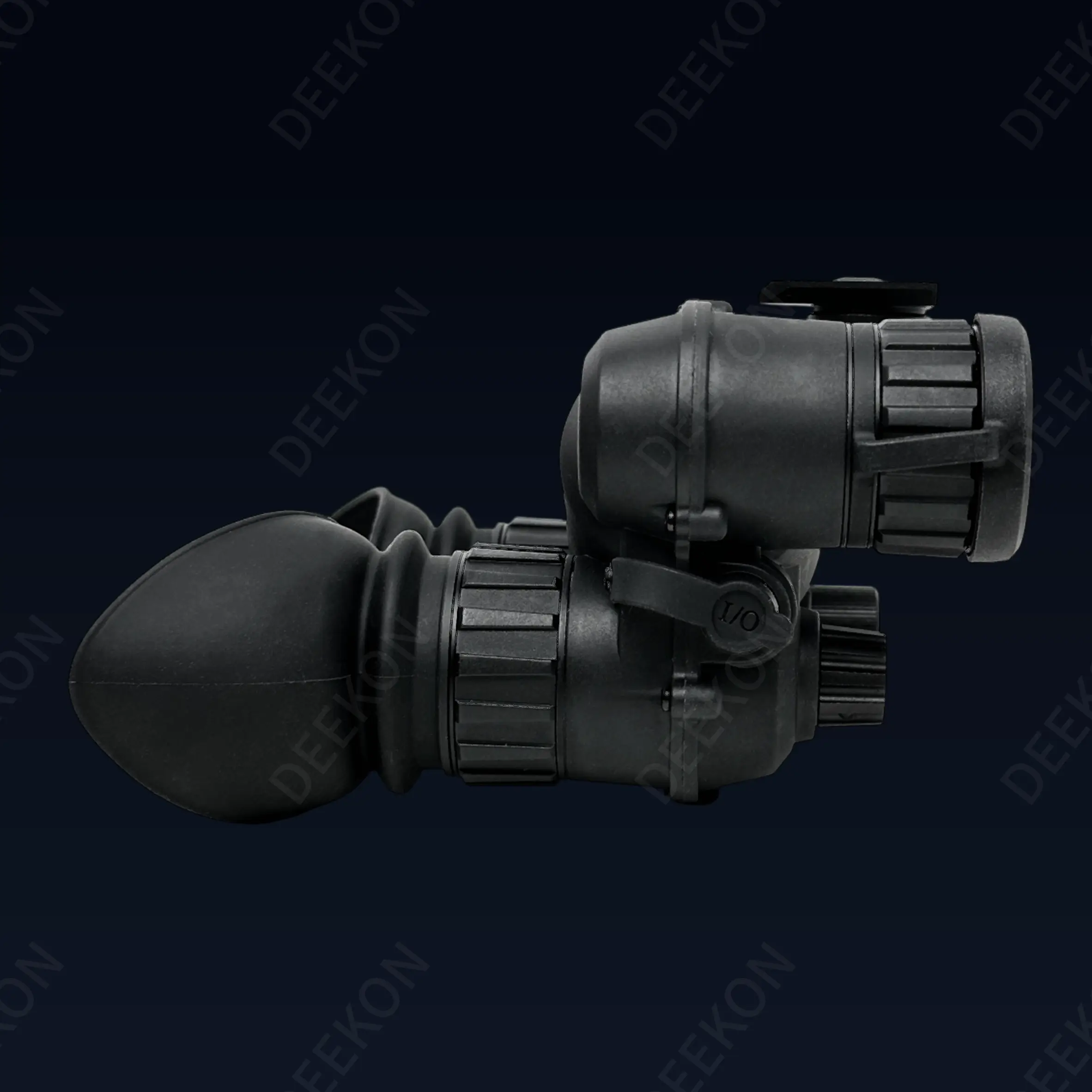

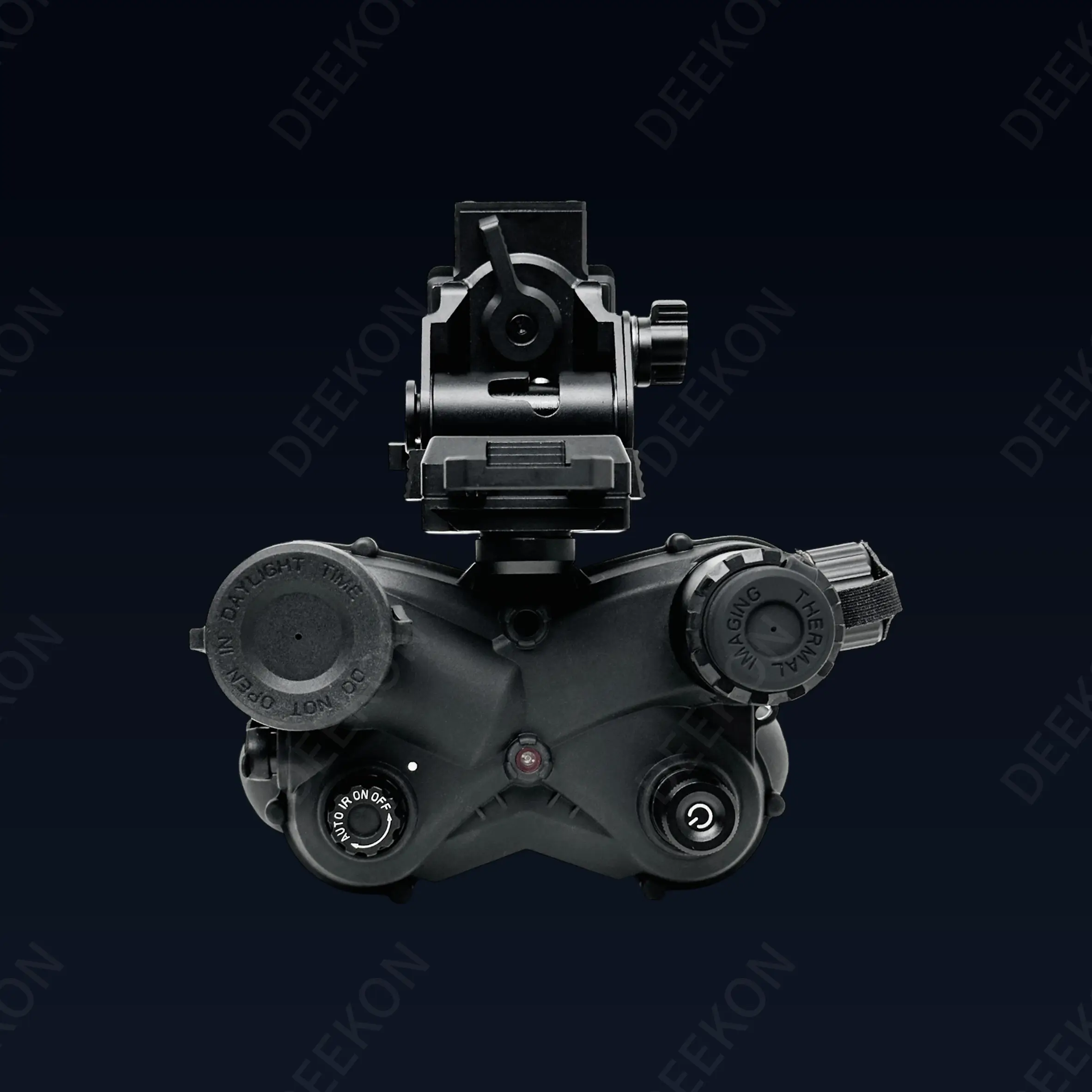

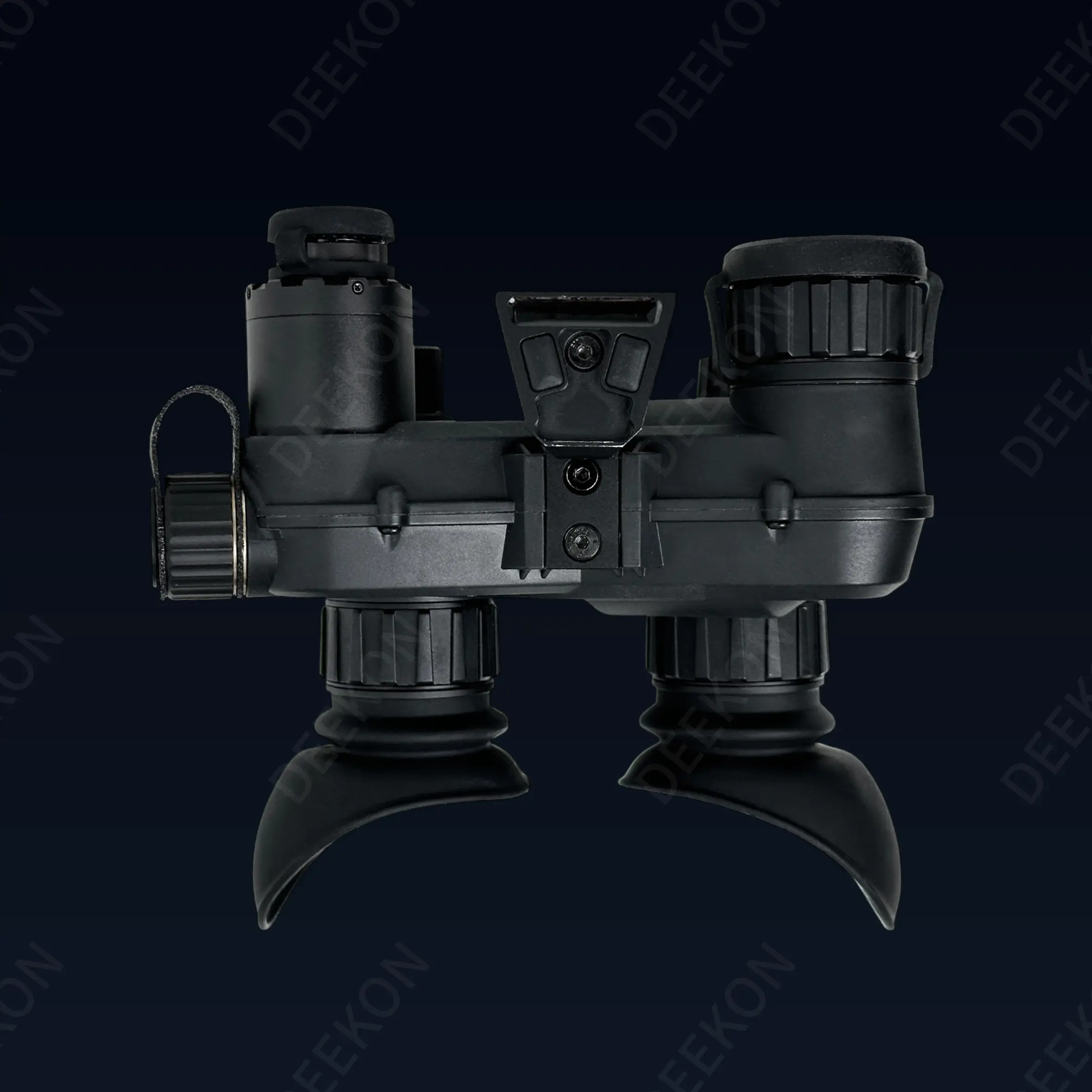

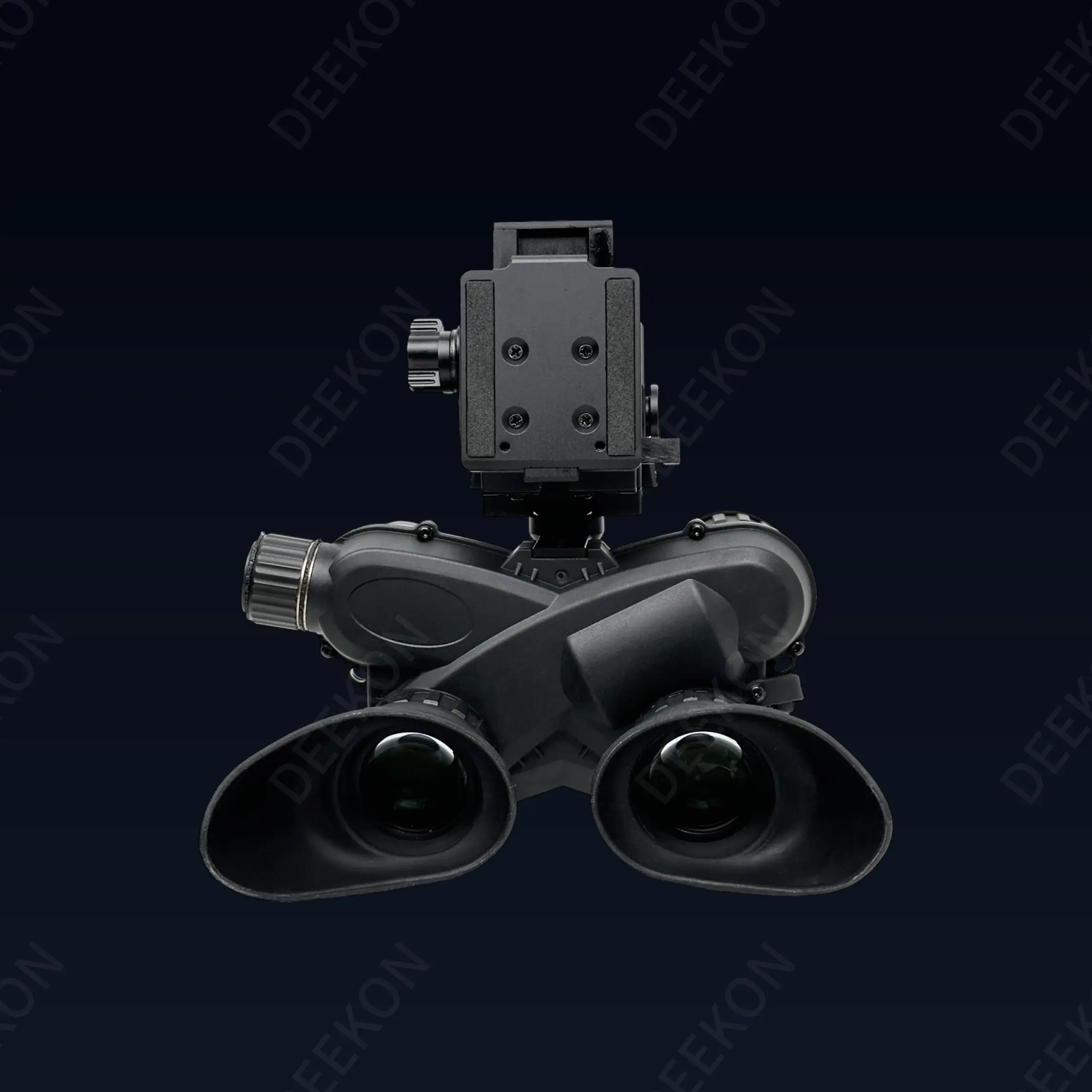

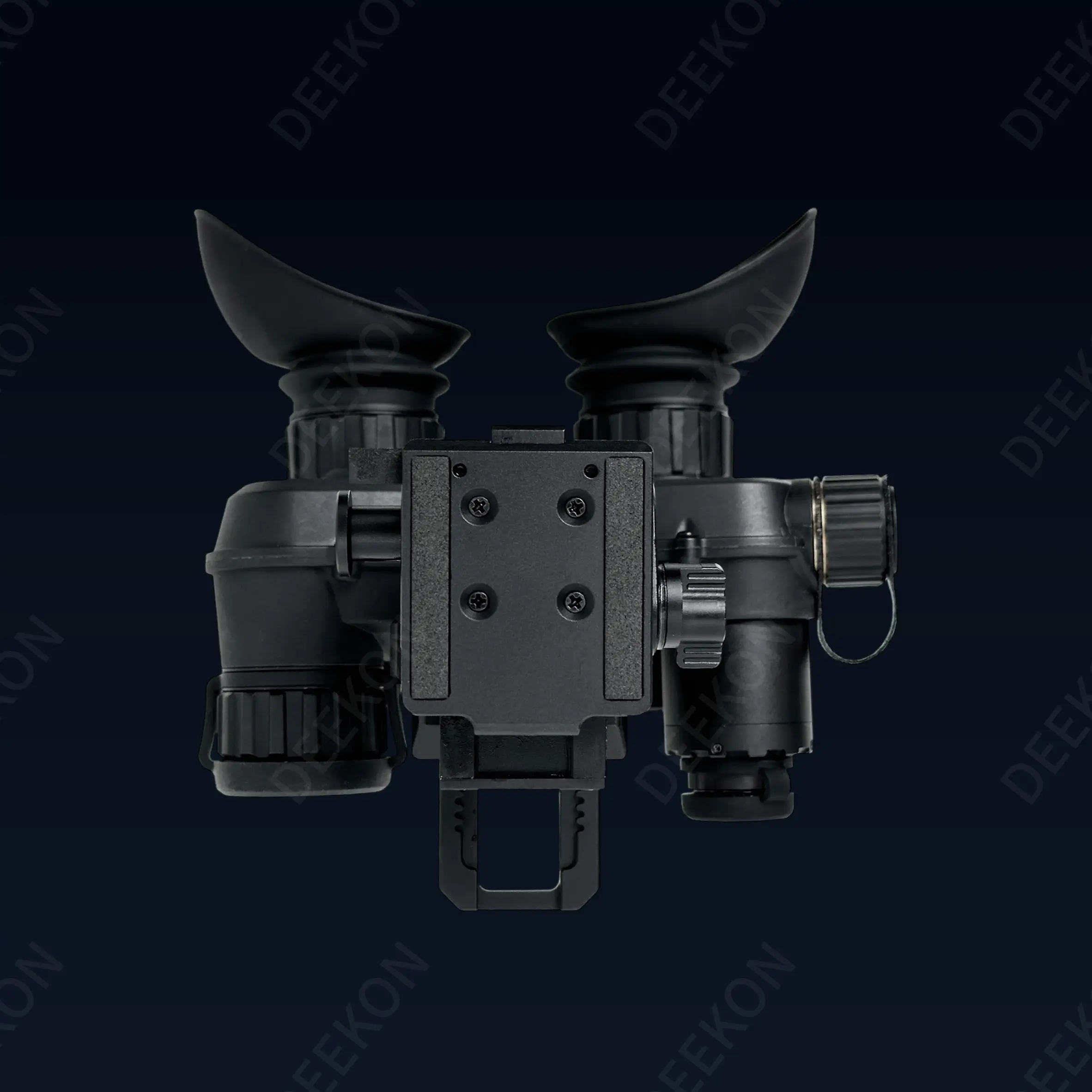

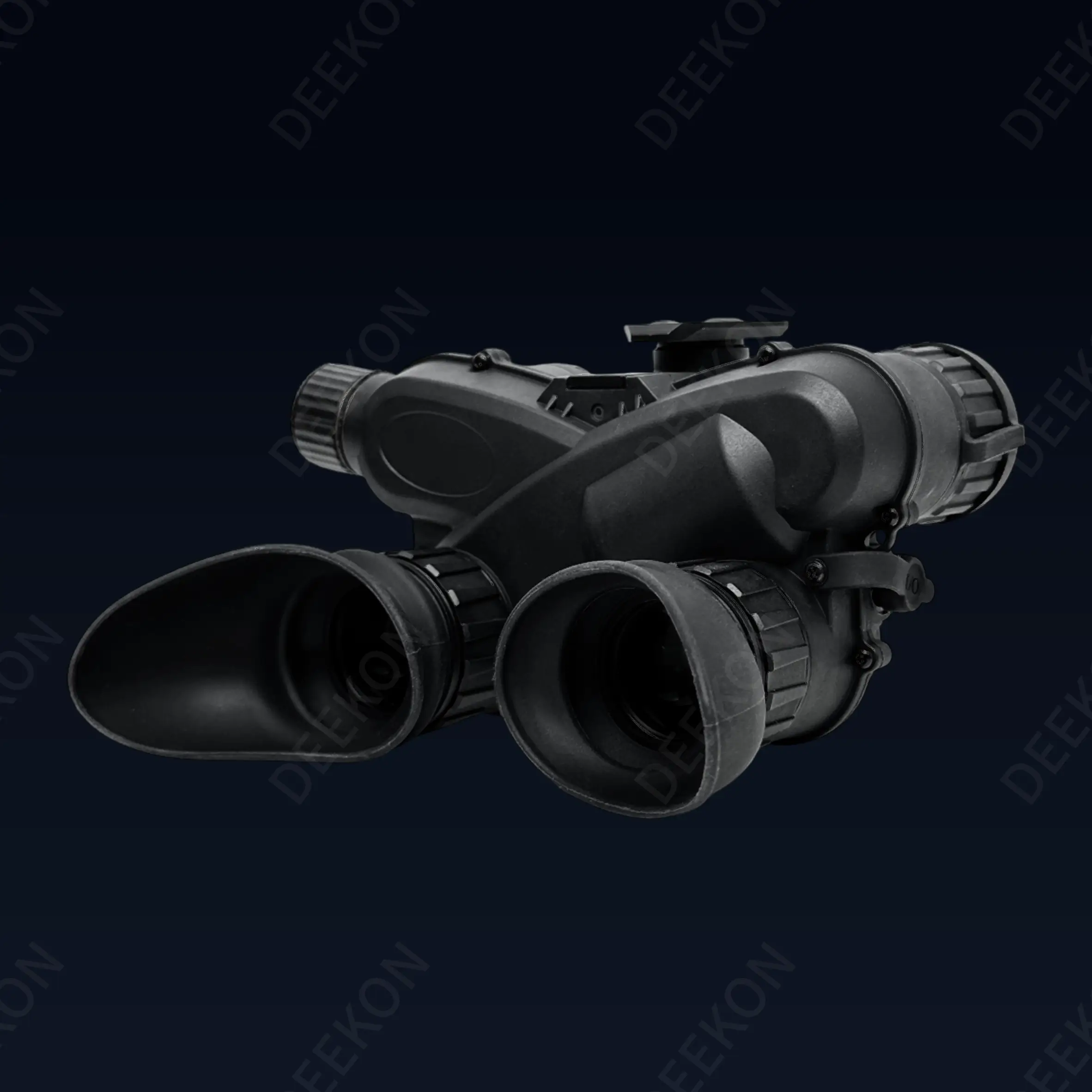

Gen 3 FOM 1500-2200+ Night Vision Thermal Fusion Goggles CNOS-22T

Gen 3 FOM 1500-2200 Night Vision Thermal Fusion Goggles CNOS-22T
Gen 3 FOM 1500-2200 Night Vision Thermal Fusion Goggles CNOS-22T Gen 3 FOM 1500-2200 Night Vision Thermal Fusion Goggles CNOS-22T Gen 3 FOM 1500-2200 Night Vision Thermal Fusion Goggles CNOS-22T Gen 3 FOM 1500-2200 Night Vision Thermal Fusion Goggles CNOS-22T Gen 3 FOM 1500-2200 Night Vision Thermal Fusion Goggles CNOS-22T Gen 3 FOM 1500-2200 Night Vision Thermal Fusion Goggles CNOS-22T Gen 3 FOM 1500-2200 Night Vision Thermal Fusion Goggles CNOS-22T Gen 3 FOM 1500-2200 Night Vision Thermal Fusion Goggles CNOS-22T Gen 3 FOM 1500-2200 Night Vision Thermal Fusion Goggles CNOS-22T Gen 3 FOM 1500-2200 Night Vision Thermal Fusion Goggles CNOS-22T Gen 3 FOM 1500-2200 Night Vision Thermal Fusion Goggles CNOS-22T Gen 3 FOM 1500-2200 Night Vision Thermal Fusion Goggles CNOS-22T

Gen 3 FOM 1500-2200 Night Vision Thermal Fusion Goggles CNOS-22T

CNOS-22T is an exclusive foldable night vision device engineered by Combat Night Optics. Designed with a perfectly balanced centre of gravity and a short hinge-to-eye distance, it offers exceptional comfort even during extended operations. At only 395 grams, it is one of the lightest and most compact dual-tube night vision goggles available today.

The CNOS-22T comes in three advanced configurations: a standard night vision version, an information-input enhanced version, and a thermal-fusion model. The thermal-fusion variant combines traditional night vision with thermal imaging, allowing users to detect heat signatures, quickly identify live targets, and significantly improve situational awareness in total darkness.

$6,599

Key Features

  • Gen 3 Image Intensifier Tube (63-71 lp/mm)
  • Ultra-lightweight design — only 395 g
  • Fully foldable, compact, and helmet-friendly
  • Military-grade durability and reliability
  • Comfortable for long-term wear; reduced neck fatigue
  • Available in NV, digital input, and thermal-fusion models

Technical Specifications

Generation: Gen 3
Resolution: 63-71 lp/mm
Magnification: 1x
FOV: 50°+-2
Focus Range: 25cm to infinity
Battery: 1x CR123A
Battery Life: 40+ hours
Weight: 360g
Dimensions: 80x132x81mm
Operating Temp: -40°C to +50°C
Request Quote

Product Information

Product Overview

The CNOS-22T is an ultra-compact, foldable dual-tube night vision device exclusively developed by Combat Night Optics, a global leader in military-grade night vision and thermal imaging technologies. Engineered for professional operators who demand reliability, stability, and lightweight performance, the CNOS-22T redefines what next-generation binocular night vision goggles (NVG) should be.

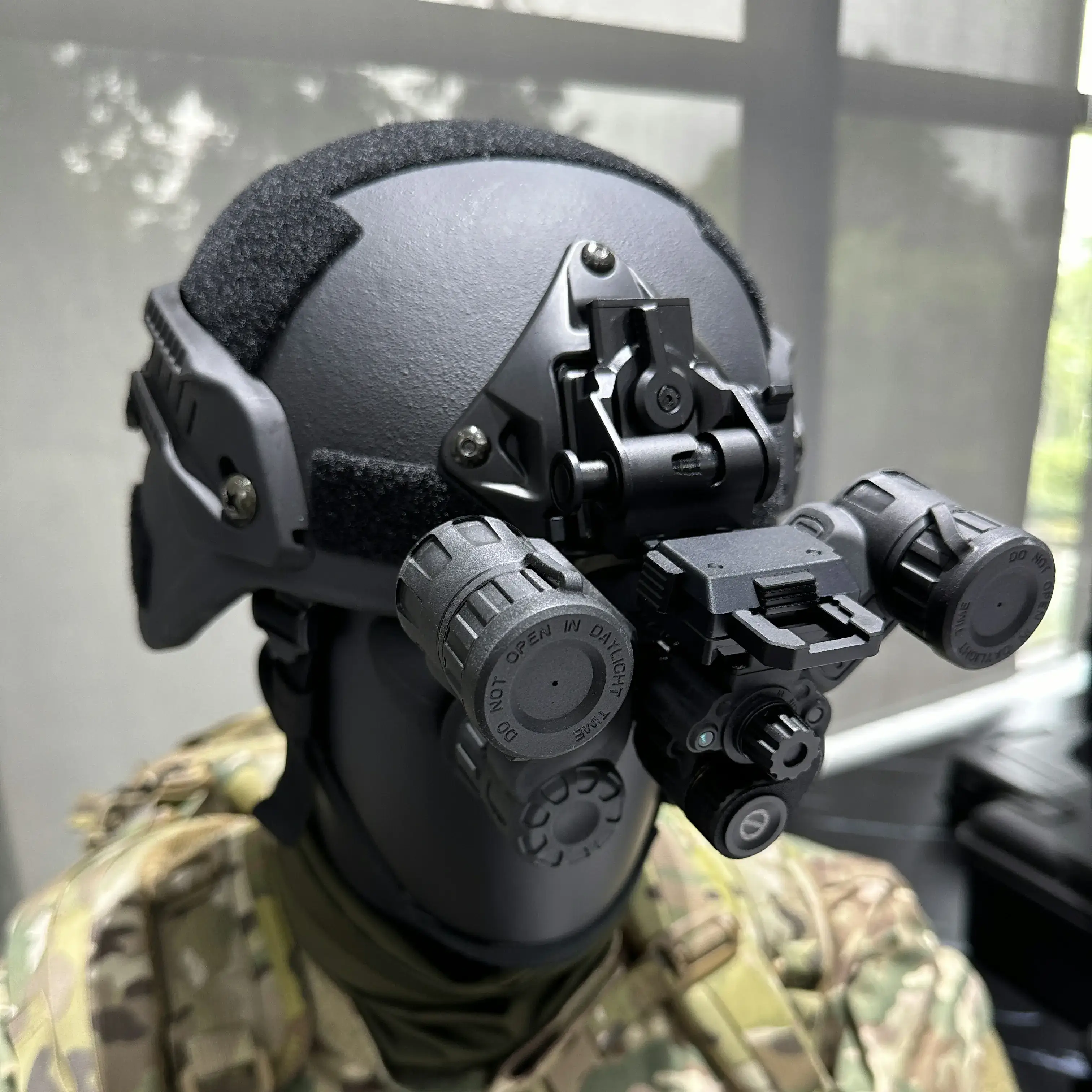

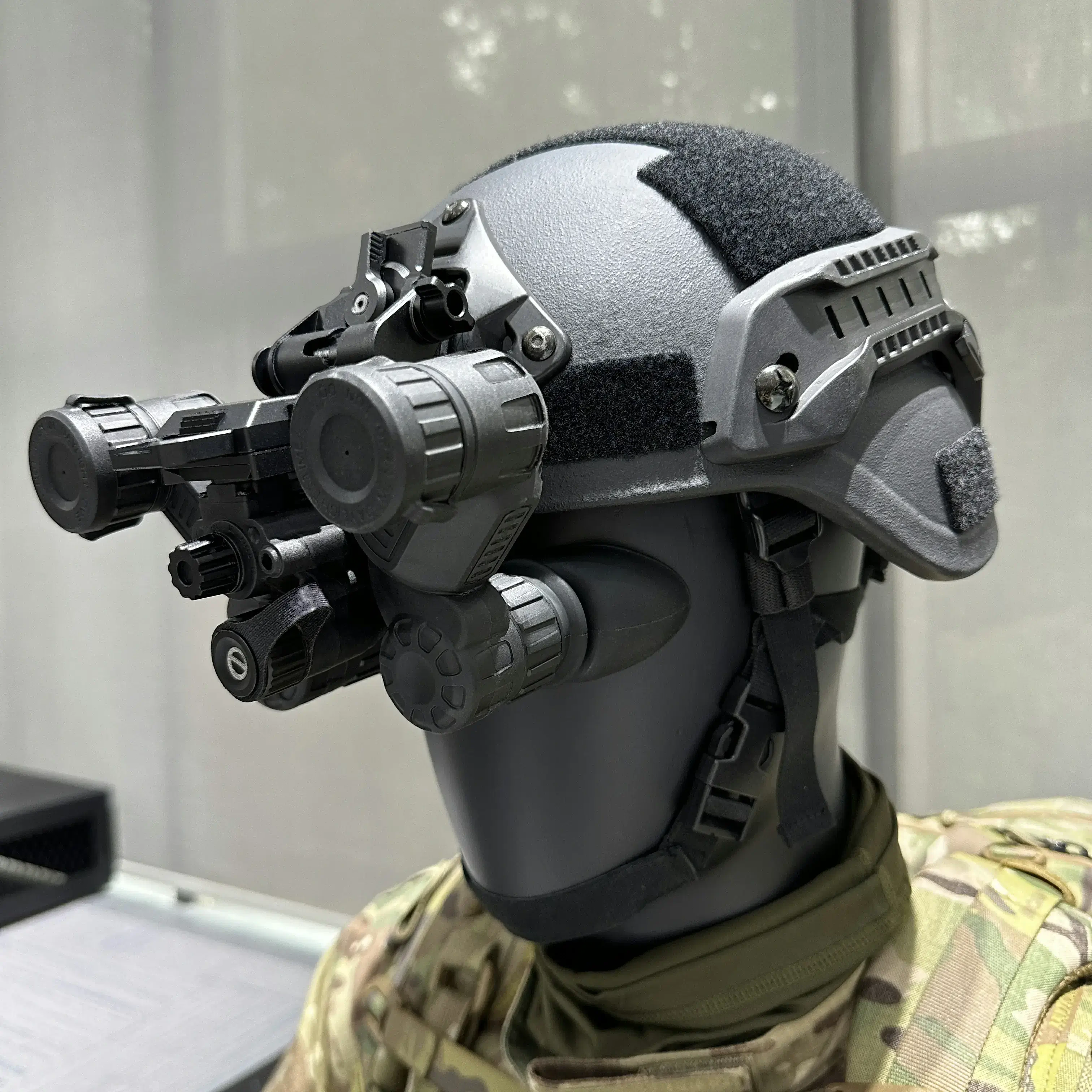

At only 395 grams, the CNOS-22T stands as one of the lightest dual-tube night vision goggles in its class. Its innovative balanced-center-of-gravity design and short interpupillary hinge distance ensure outstanding comfort, even during long-duration missions. Whether mounted on a helmet or used handheld, the CNOS-22T minimizes neck strain and fatigue—making it ideal for military operations, tactical law-enforcement units, security patrol teams, and outdoor night-time enthusiasts.

Three Advanced Versions for Different Mission Profiles

To meet the demands of various operational environments, the CNOS-22T night vision device is available in three high-performance configurations:

1. Standard Night Vision Version

Equipped with high-sensitivity image intensifier tubes, this version delivers exceptional clarity and low-light performance. It is perfect for navigation, surveillance, reconnaissance, and general nighttime observation.

2. Information-Input Enhanced Version

Designed for modern digital battlefield requirements, this model supports real-time data input. Operators can receive visual overlays, mission prompts, and tactical information directly through the night vision display—significantly enhancing communication and coordination.

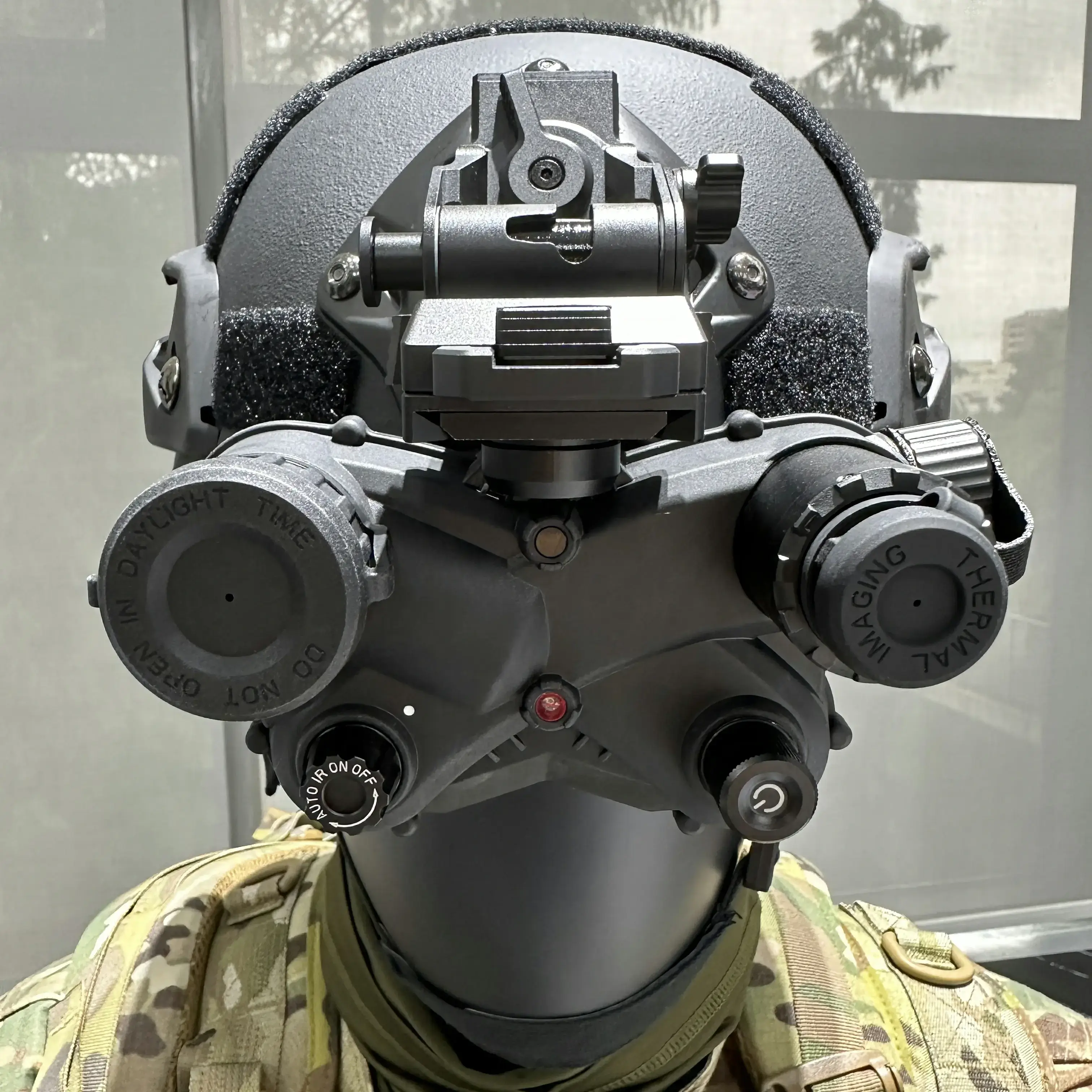

3. Thermal-Fusion Version

The thermal-fusion CNOS-22T combines traditional night vision with thermal detection technology, allowing users to instantly identify heat signatures, detect hidden or camouflaged live targets, and enhance situational awareness in complete darkness, smoke, fog, or harsh environments.

This advanced NV + thermal fusion capability dramatically improves threat detection and nighttime identification, making it one of the most powerful compact fusion night vision goggles on the market.

Applications

  • Military Operations
  • Law Enforcement
  • Search & Rescue
  • Surveillance
  • Wildlife Observation

Package Includes

  • NV-Monocular Pro Unit
  • Head Mount Assembly
  • Protective Carrying Case
  • CR123A Battery (2x)
  • User Manual & Warranty
